The Manufacturing Refine Of Graphite Block Material

The Manufacturing Refine Of Graphite Block Material
Quick Index Hidden
1 The production process of graphite block product
2 ① Tool crushing as well as screening
3 ② Grinding.
The production of graphite block product consists of manufacturing procedures such as tool crushing and also evaluating, grinding, batching, kneading and also forming as well as cooling.

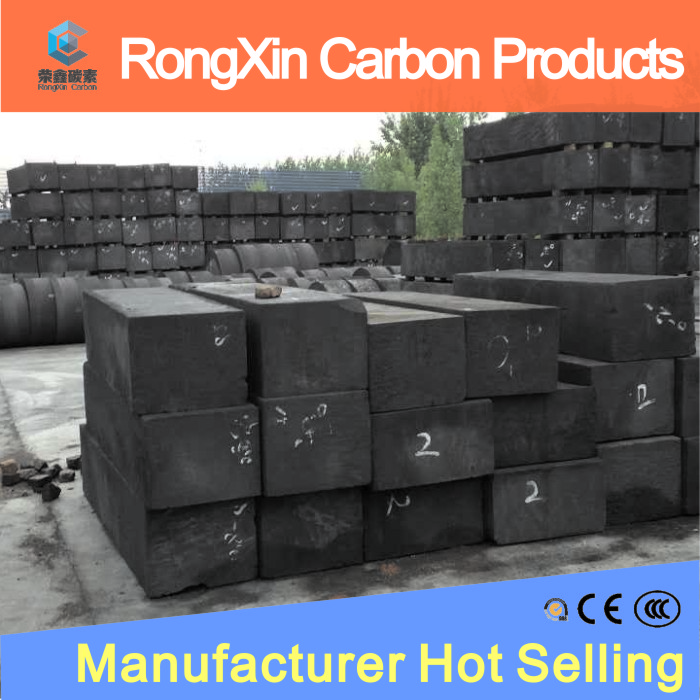

graphite block material.

① Medium Squashing And Screening.
This job is geared up with a medium squashing and also evaluating system for calcined anthracite. The calcined anthracite is fed by an electro-magnetic vibrating feeder, and sent out to a double-layer straight vibrating display and also a single-layer horizontal vibrating screen using a belt conveyor and a bucket elevator. The products are screened as well as processed. The fragment size is more than 10mm. Return to the intermediate bin, and then feed the product from the electromagnetic shaking feeder right into the double-roll crusher. Sieving again after medium crushing. 10 ～ 6mm, 6 ～ 3mm granularity materials can straight go into the corresponding batching container, or return to the double-roll crusher to be finely squashed to listed below 3mm, which is convenient for versatile manufacturing adjustment.

There are 3 kinds of granular materials, 10 ～ 6mm, 6 ～ 3mm, 3 ～ 0mm, 6 ～ 3mm, 3 ～ 0mm. In addition to straight going into the batching bin, some of them are sent to the mill to pulverize right into powder.


After being crushed to a fragment dimension of less than 20mm in two stages in the handling section, the raw scraps are transported directly right into the raw scrap silo by belt conveyors and also bucket elevators for use.
